MECHANICAL OVERSPEED

DEVICE

Reduce the risks at your hydro station by protecting the turbine from an over-speed condition with a mechanical over-speed device that acts independently from the electronic governor.

CONTACT AN EXPERT


Mechanical Overspeed Device – Full Brochure

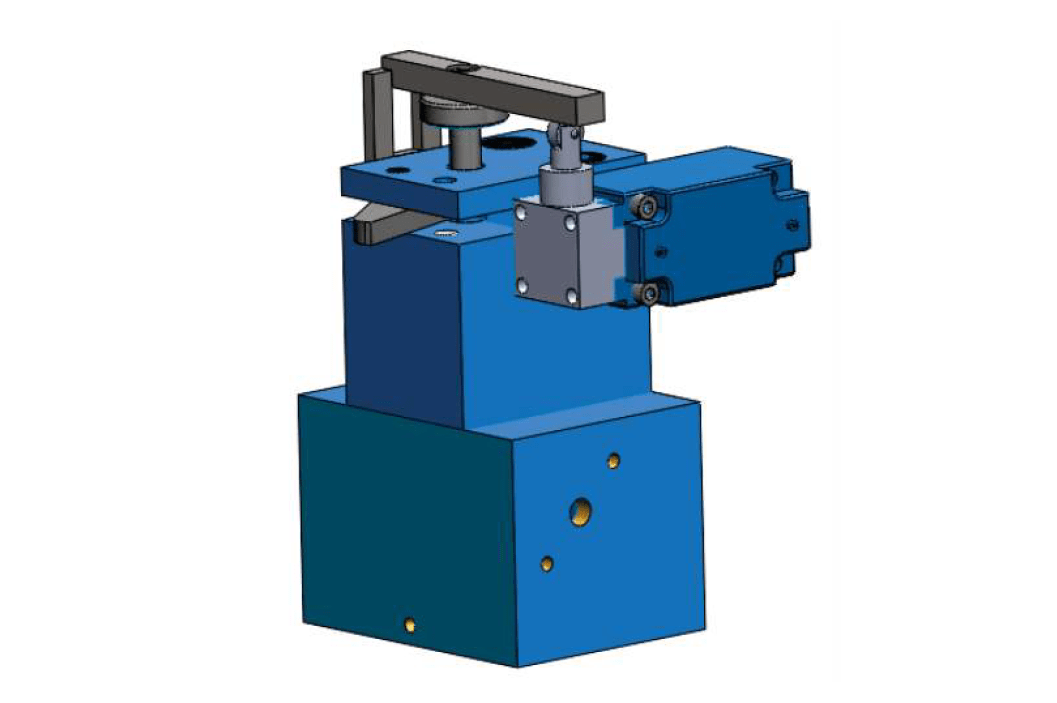

GENERAL INFORMATION

The overspeed mechanical switch is a protection device and consists of a centrifugal pendulum and a trigger, which are actuated as a function of the turbine’s speed. Once the device is actuated, it commands the turbine’s inlet closing (wicket gate, injectors, etc,), independently of the electrical command of the governor.

SPECIFICATIONS

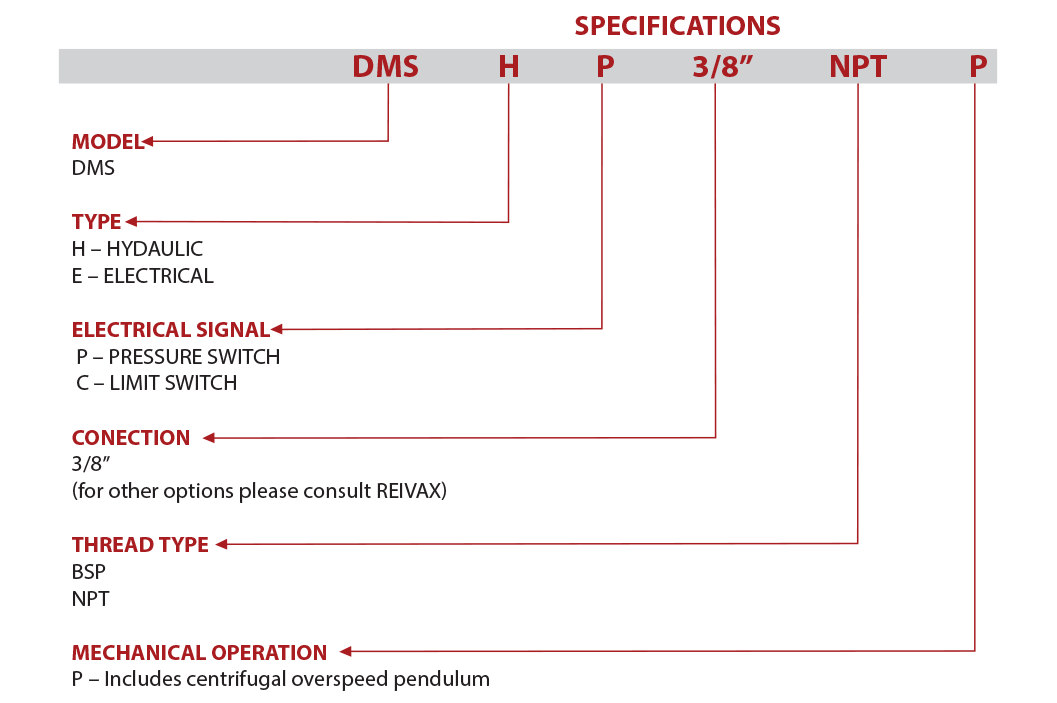

Specifications Overspeed Mechanical Switch Device

ELECTRICAL CONTACT

When actuated, it provides only the electrical signal for automation.

HYDRAULIC TYPE

When actuated, it provides both hydraulic emergency turbine’s closing as well as electrical signal for automation.

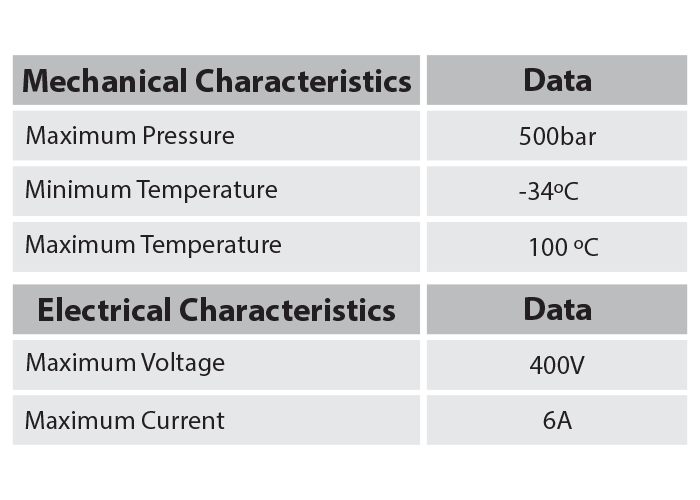

Mechanical Characteristics Electrical Characteristics

SYMBOLOGY

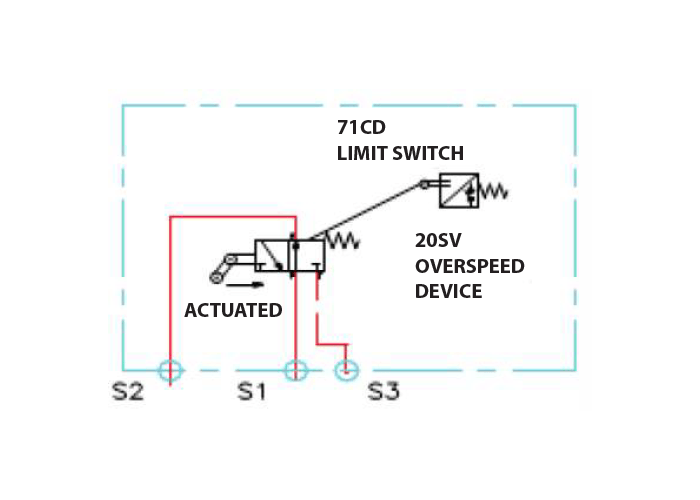

Symbol Overspeed Mechanical

DETAILS

Hydraulic Type Actuating Device Pressure Switch

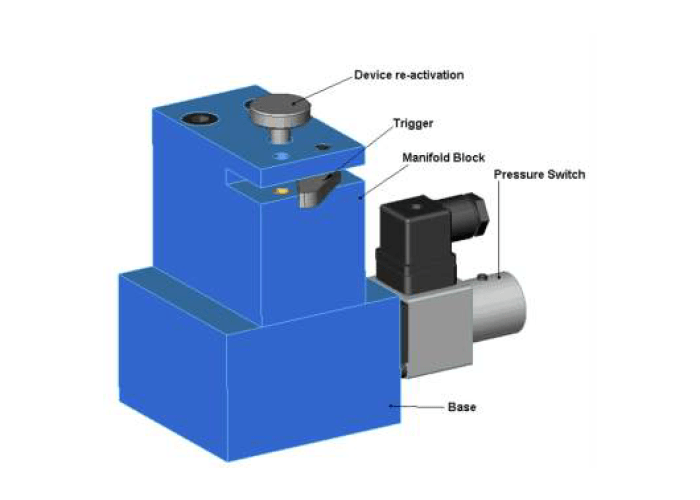

Pressure Switch Mechanical Overspeed

Hydraulic Type Actuating Device Limit Switch

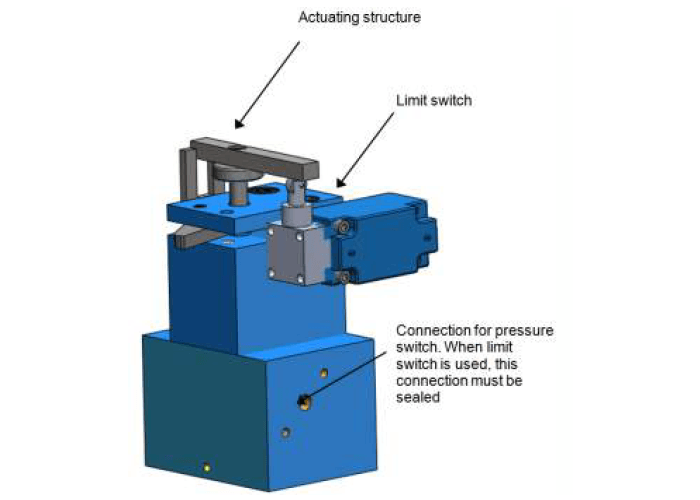

Limit Switch Mechanical Overspeed

Electrical Contact Type Device (electrical contact only)

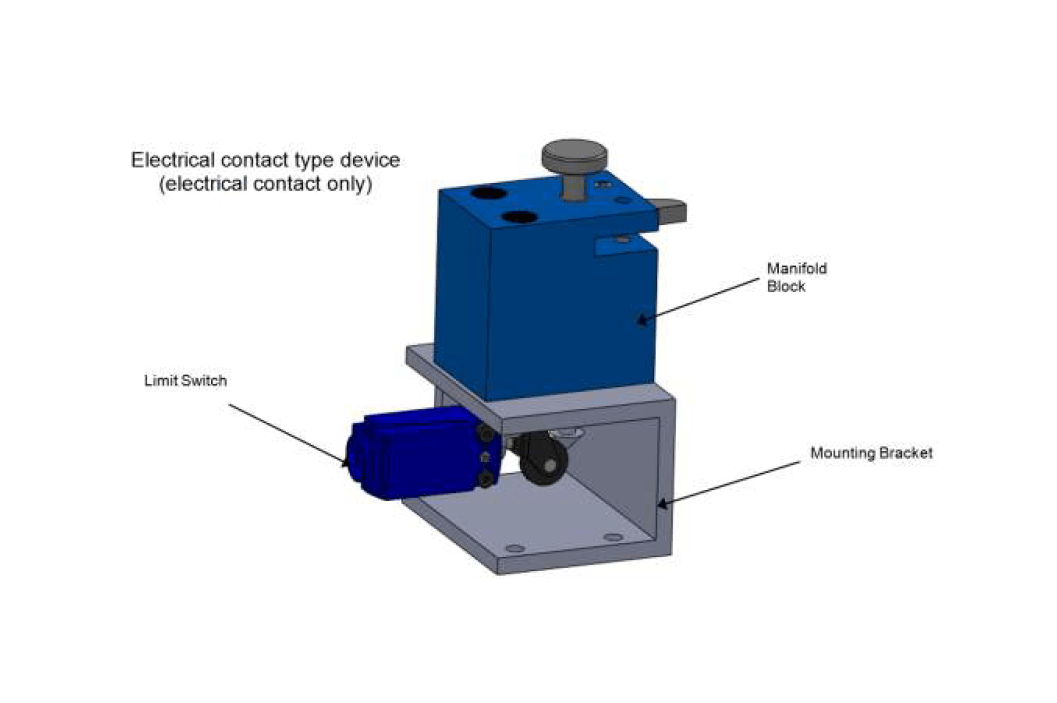

Electric Contact Mechanical Overspeed

OVERSPEED CENTRIFUGAL PENDULUM

Overspeed Centrifugal Pendulum

DIMENSIONS (mm)

Centrifugal Pendulum

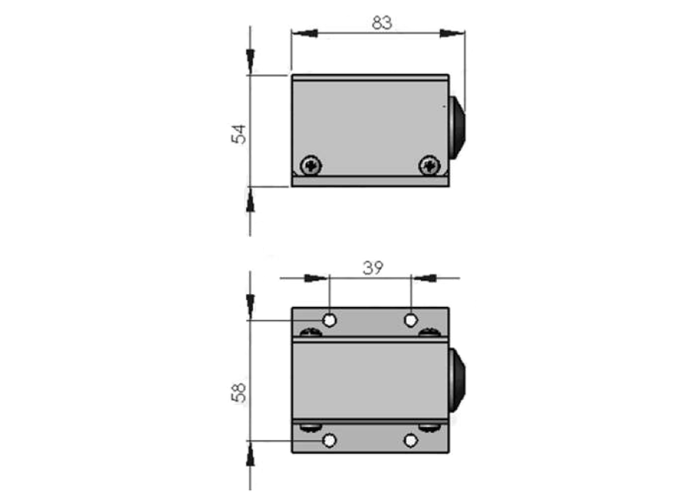

Dimensions Centrifugal Pendulum

Hydraulic Type Device

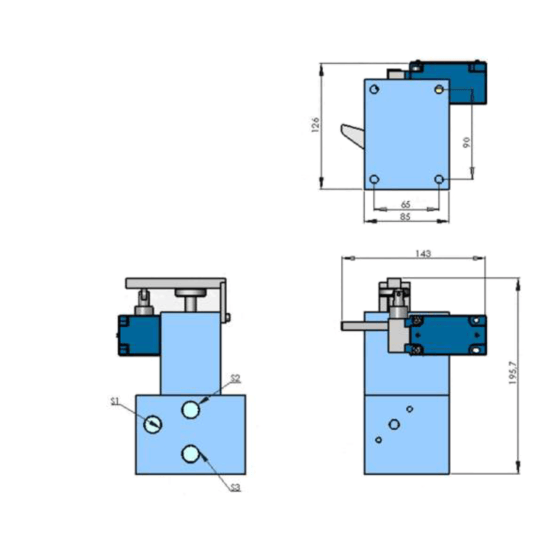

Dimensions Hydraulic Type Device

Electrical Contact Device

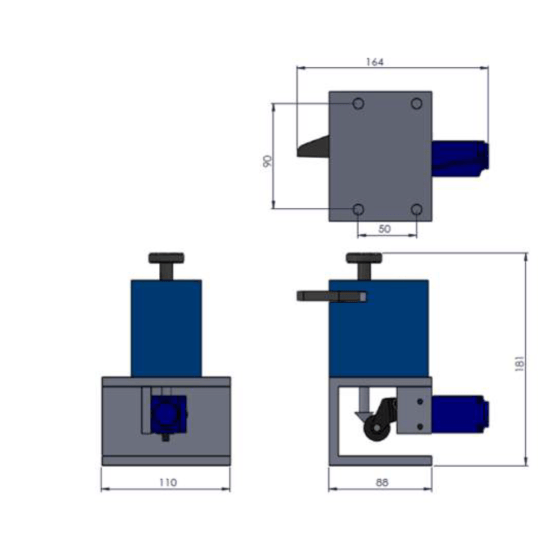

Dimensions Electrical Contact Device

MOUNTING

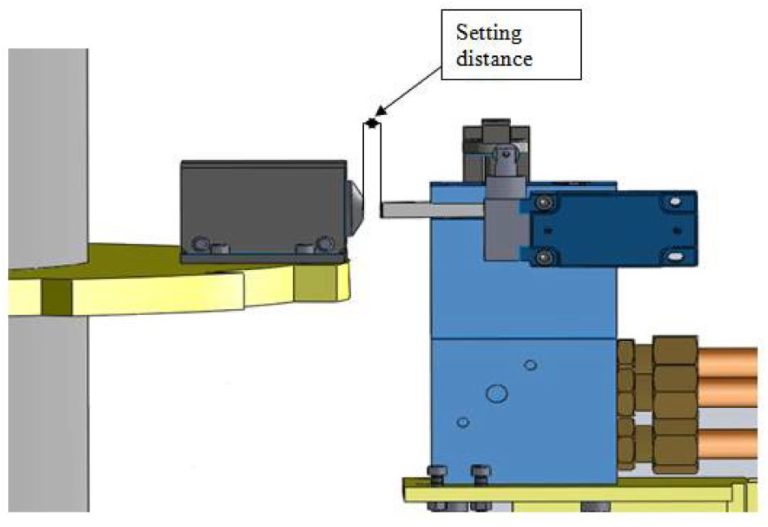

Mounting Overspeed Mechanical Switch Device
Overspeed Device Setting

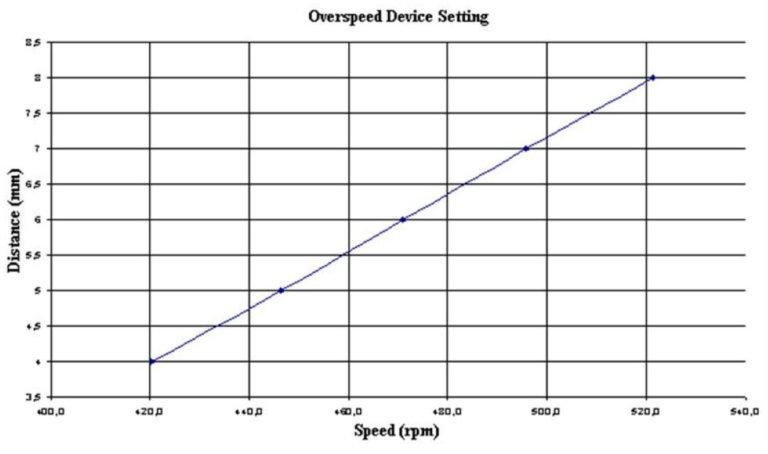

The specification of the correct setting distance for each project is carried out in the factory’s manufacturing and testing procedures, according to the displacement VS speed curves.
